SteamIQ monitoring hardware
The foundation of better intelligence.
AI is only as good as its data. While others rely on single-sensor readings, we capture the complete picture with multi-sensor fusion, giving you the richest data foundation in the industry.
- Battery life
- 12-15 yr
- Industrial rating
- IP67
- To install
- Minutes
Inside the monitor
Four sensors. One complete picture.
Traditional monitors use a single sensor and miss the full story. SteamIQ combines four distinct sensing technologies to detect failures others can't see.
01Patented
Differential ultrasound
Our patented piezoceramic sensor interrogates steam leak intensity directly through the pipe wall, quantifying losses that temperature alone cannot even detect. Where thermometers are easily fooled by shared return lines and ambient conditions, ultrasound is the last word.
CatchesLeaks, failed-open traps, blow-through
02Patented
Cycle counting
Like an EKG for your steam trap. Cycle counting reads every discharge event to measure condensate loading, activity levels, and behavioral patterns over time. Where leak detection is a spot check, cycle counting is the calculus, revealing how trap behavior shifts day to day and month over month, catching degradation long before complete failure.
CatchesDegrading performance, stuck traps, condensate loading, failed-closed traps
03
Temperature monitoring
Temperature doesn't lead the diagnosis. It confirms it. Continuous thermal sensing verifies steam presence, catches failed-closed traps that stop discharging entirely, and flags upstream supply problems. The supporting evidence that turns ultrasonic suspicion into certainty.
CatchesFailed-closed traps, low steam supply, process issues
04Patented
Water hammer detection
Water hammer is intermittent, unpredictable, and dangerous. Traditional detection is "someone heard a bang" or "something broke." SteamIQ's 3-axis accelerometer runs continuously, catching the shock signature of condensate impacts and alerting immediately. No other steam trap monitor on the market detects water hammer.
CatchesWater hammer, vibration anomalies, mechanical issues
Each sensor tells part of the story. Together, they give our AI the complete picture, and that's why SteamIQ catches failures others miss.
Patented · industry first
Water hammer detection built in.
Our 3-axis accelerometer doesn't just monitor steam traps. It detects water hammer events that other monitors completely miss. One sensor, two critical capabilities.
Specifications
Built for industrial reality.
Steam systems are harsh environments. SteamIQ monitors are engineered to thrive where others fail.
Rugged by design
- Enclosure
- IP67 rated (dust-tight, waterproof)
- Operating temp
- -40°C to +85°C
- Battery life
- 12-15 years (non-rechargeable lithium)
- Mounting
- Dual 3/8"-16 threaded (back and bottom)
- Size
- 116 × 69 × 30.5 mm (4.56 × 2.72 × 1.2 in); 195 mm (7.68 in) tall with the antenna
- Weight
- About 0.75 lb
Withstands heat, moisture, vibration, and the daily abuse of industrial environments.

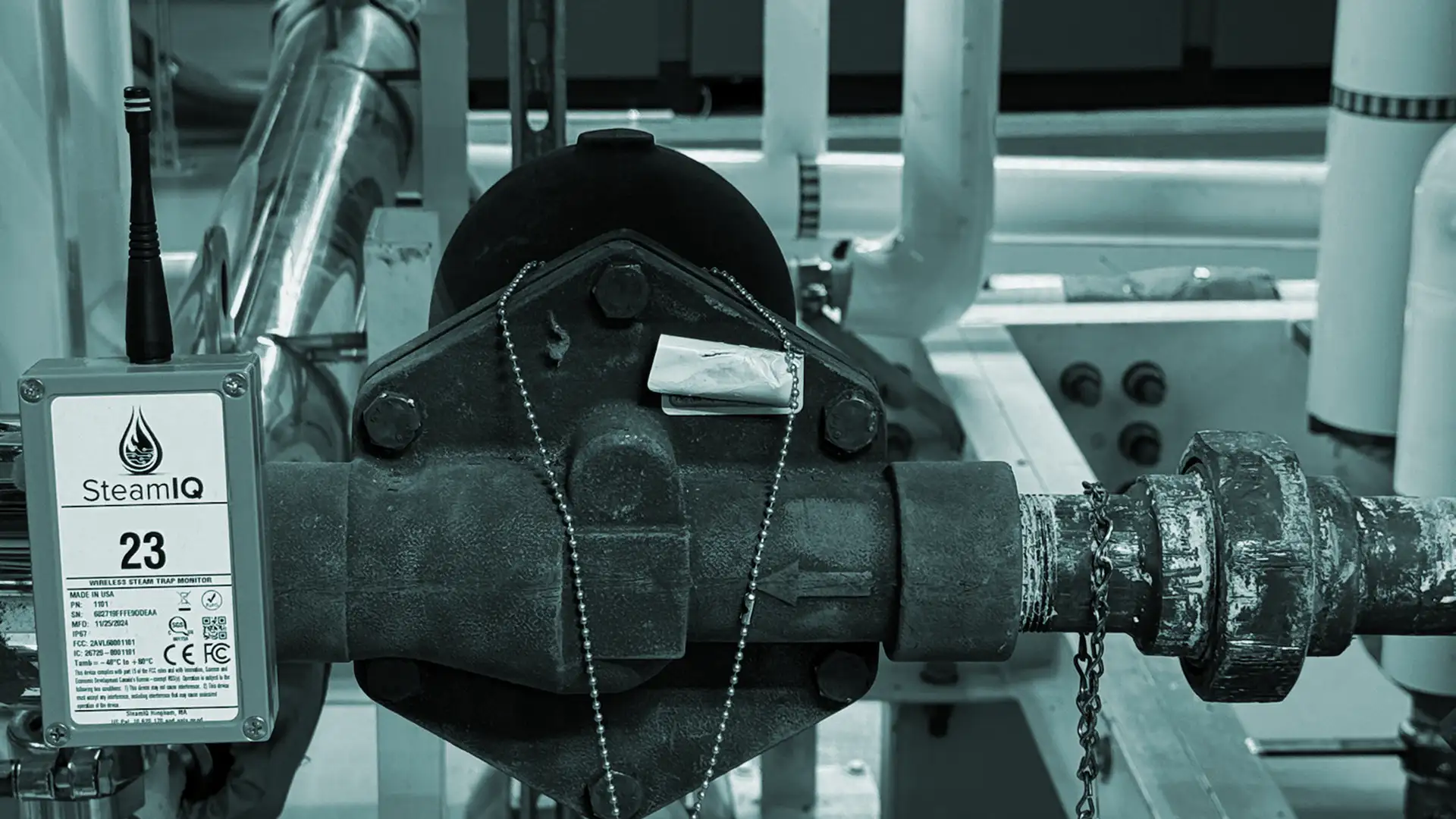

Install in minutes
- No wiring required: fully battery powered
- No facility network dependency: uses LoRaWAN
- Universal mounting fits tight spaces
- Oversized serial numbers readable from distance
- Basic tools only: no special equipment
Most users complete installation in under 5 minutes per device using basic hand tools.
Certifications & compliance
- SGS Certifiedto UL 61010-1
- CE MarkedEuropean Conformity
- FCC ApprovedUSA
- IC ApprovedCanada
- IP67 RatedIngress Protection
Protected by US and international patents
Protected innovation.
SteamIQ's technology is protected by multiple patents covering our sensing methods and analytical approaches.
- US 10,620,170Steam trap monitoring and diagnosticsGoogle Patents ↗
- US 11,016,063Steam trap monitoring and diagnostics (continuation)Google Patents ↗
- US 12,276,638NEWWater hammer detection methodsGoogle Patents ↗
- CA 3,074,672Steam trap monitoring (Canadian patent)Google Patents ↗
Additional patents pending
